IPC86CEB-AF18KC-I0
Professional UNV surveillance technology engineered for dependable security, intelligent monitoring and continuous operation.
Pro Series
IPC86CEB-AF18KC-I0
IPC86CEB-AF18KC-I0

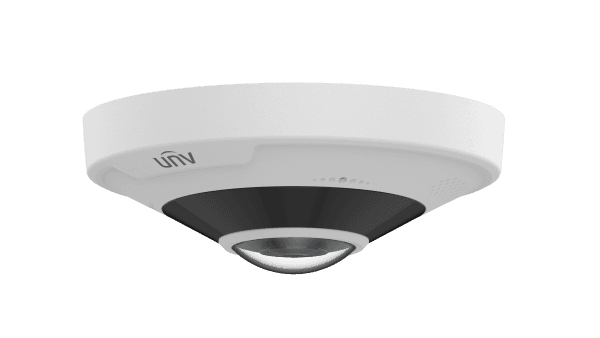

12MP OmniView Fixed IR Fisheye Network Camera featuring a 1/1.7" CMOS sensor, 360° panoramic image, built-in mic and speaker, and heat map statistical analysis.
High quality image with 12 MP, 1/1.7" CMOS sensor
Max. 4000 × 3000 resolution
Ultra 265, H.265, H.264, MJPEG
Ultra wide-angle lens, 360° panoramic image
Embedded infrared light, 360° fill-in light, up to 15 m (49.2 ft) IR distance
Multiple decoding modes, supports software and hardware modes
Suitable applications
Request Product Information
Contact our team for product guidance, availability and quotation assistance.
Product Description
Product details
12MP OmniView Fixed IR Fisheye Network Camera featuring a 1/1.7" CMOS sensor, 360° panoramic image, built-in mic and speaker, and heat map statistical analysis.
Core Specifications
Technical highlights
09 specifications
Resolution
12MP (4000 × 3000)
Sensor
1/1.7" CMOS
Lens
1.8mm Fixed, 180° Field of View
Compression
Ultra 265 / H.265 / H.264 / MJPEG
Illumination
IR up to 15m (49.2 ft)
Storage
MicroSD up to 512GB
Protection
IP67 / IK10
Audio
Built-in dual-mic and speaker, Two-way Audio
Power
DC 12V ±25%, PoE (IEEE 802.3af)
IPC86CEB-AF18KC-I0
High quality image with 12 MP, 1/1.7" CMOS sensor
Max. 4000 × 3000 resolution
Ultra 265, H.265, H.264, MJPEG
Ultra wide-angle lens, 360° panoramic image
Embedded infrared light, 360° fill-in light, up to 15 m (49.2 ft) IR distance
Multiple decoding modes, supports software and hardware modes
Heat map statistical analysis (working with management platform)
Cross line detection and intrusion detection
Built-in mic and speaker, supports two-way audio
MicroSD, up to 512 GB
IK10 vandal resistant
IP67 protection
