IPC815SB-ADF14K-I0

Professional UNV surveillance technology engineered for dependable security, intelligent monitoring and continuous operation.

View Product Details

Network Cameras

Prime Series

IPC815SB-ADF14K-I0

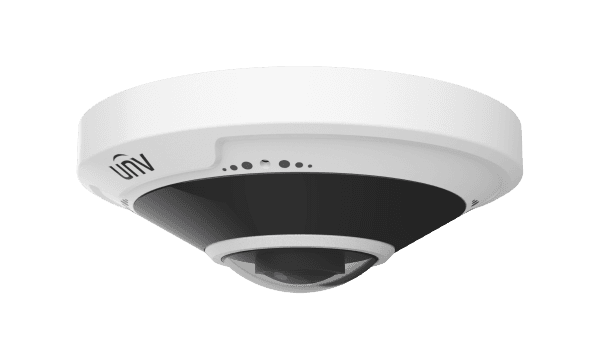

5MP Fixed IR Fisheye Network Camera featuring a 1/2.8" CMOS sensor, 180° panoramic view, built-in dual-mic, Smart IR, and robust IP66 and IK10 protection.

High quality image with 5MP, 1/2.8" CMOS sensor

5MP (2592 × 1944)@30/25 fps

Ultra 265, H.265, H.264, MJPEG video compression

120 dB true WDR technology

Built-in dual-mic with better sound performance

Smart IR, up to 10 m (32.8 ft) IR distance

Suitable applications

Retail storesOfficesPublic spacesCommercial buildings

Request Product Information

Contact our team for product guidance, availability and quotation assistance.

Product Description

Product details

5MP Fixed IR Fisheye Network Camera featuring a 1/2.8" CMOS sensor, 180° panoramic view, built-in dual-mic, Smart IR, and robust IP66 and IK10 protection.

Retail stores

Offices

Public spaces

Commercial buildings

Core Specifications

Technical highlights

09 specifications

Resolution

5MP (2592 × 1944)

Sensor

1/2.8" CMOS

Lens

1.4mm Fixed, 180° Field of View

Compression

Ultra 265 / H.265 / H.264 / MJPEG

Illumination

Smart IR up to 10m (32.8 ft)

Storage

MicroSD up to 512GB

Protection

IP66 / IK10

Audio

Built-in dual-mic, Two-way Audio

Power

DC 12V ±25%, PoE (IEEE 802.3af)
