IPC3605SB-ADF16KM-I0
Professional UNV surveillance technology engineered for dependable security, intelligent monitoring and continuous operation.
Prime Series
IPC3605SB-ADF16KM-I0
IPC3605SB-ADF16KM-I0

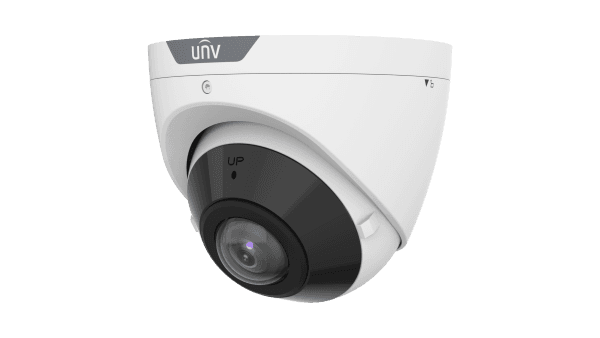

5MP OmniView Fixed IR Turret Network Camera featuring 180° panoramic coverage, smart intrusion prevention, 120 dB true WDR, smart IR, and IP67 and IK10 protection.
High quality image with 5MP, 1/2.7" CMOS sensor
5MP (2880 × 1620) up to 30 fps
Wide angle technology provides a 180° horizontal viewing angle
Dewarp level can be configured from 1 to 9
Smart intrusion prevention with false alarm filtering and target classification
120 dB true WDR technology for clear images in strong light scenes
Suitable applications
Request Product Information
Contact our team for product guidance, availability and quotation assistance.
Product Description
Product details
5MP OmniView Fixed IR Turret Network Camera featuring 180° panoramic coverage, smart intrusion prevention, 120 dB true WDR, smart IR, and IP67 and IK10 protection.
Core Specifications
Technical highlights
11 specifications
Resolution
5MP (2880 × 1620)
Sensor
1/2.7" CMOS
Lens
1.68mm Fixed, 180° Field of View
Compression
Ultra 265 / H.265 / H.264 / MJPEG
Illumination
Smart IR up to 20m
WDR
120 dB True WDR
Intelligent
Smart Intrusion Prevention with Target Classification
Storage
MicroSD up to 512GB
Protection
IP67 / IK10
Audio
Built-in Mic
Power
DC 12V ±25%, PoE (IEEE 802.3af)
IPC3605SB-ADF16KM-I0
High quality image with 5MP, 1/2.7" CMOS sensor
5MP (2880 × 1620) up to 30 fps
Wide angle technology provides a 180° horizontal viewing angle
Dewarp level can be configured from 1 to 9
Smart intrusion prevention with false alarm filtering and target classification
120 dB true WDR technology for clear images in strong light scenes
Smart IR with illumination distance up to 20m
Built-in microphone
MicroSD storage up to 512GB
IP67 protection with IK10 vandal resistance
