IPC2225SB-ADF60KM-I1
Professional UNV surveillance technology engineered for dependable security, intelligent monitoring and continuous operation.
Prime Series
IPC2225SB-ADF60KM-I1
IPC2225SB-ADF60KM-I1

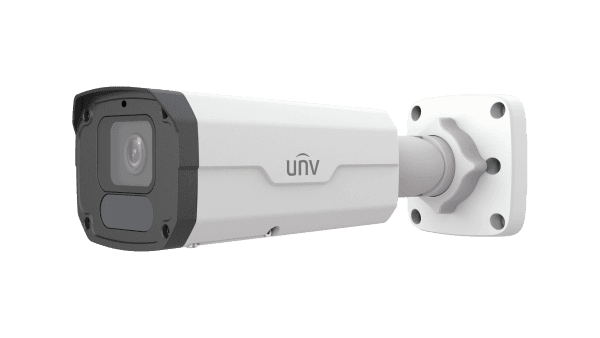

5MP LightHunter Fixed IR Bullet Network Camera featuring a 1/2.7" CMOS sensor, 120 dB optical WDR, and smart intrusion prevention.
High quality image with 5 MP, 1/2.7" CMOS sensor
2880 × 1620@30 fps in the main stream
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention (cross line and intrusion based on human/vehicle detection)
LightHunter technology ensures ultra-high image quality in low illumination environment
Supports 9:16 corridor mode
Suitable applications
Request Product Information
Contact our team for product guidance, availability and quotation assistance.
Product Description
Product details
5MP LightHunter Fixed IR Bullet Network Camera featuring a 1/2.7" CMOS sensor, 120 dB optical WDR, and smart intrusion prevention.
Core Specifications
Technical highlights
11 specifications
Resolution
5 MP (2880 × 1620)
Sensor
1/2.7" CMOS
Lens
6.0 mm Fixed
Compression
Ultra 265 / H.265 / H.264 / MJPEG
Illumination
Smart IR up to 80 m (262.5 ft)
WDR
120 dB True WDR
Storage
MicroSD up to 512 GB
Protection
IP67 / IK10
Audio
Built-in Mic, 1/1 Audio I/O
Alarm
1/1 Alarm I/O
Power
DC 12V ±25%, PoE (IEEE 802.3af)
IPC2225SB-ADF60KM-I1
High quality image with 5 MP, 1/2.7" CMOS sensor
2880 × 1620@30 fps in the main stream
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention (cross line and intrusion based on human/vehicle detection)
LightHunter technology ensures ultra-high image quality in low illumination environment
Supports 9:16 corridor mode
Up to 120 dB optical WDR (wide dynamic range)
Supports smart IR, up to 80 m (262.5 ft) IR range
DC 12 V, PoE (IEEE 802.3af) power supply
Alarm I/O: 1/1, audio I/O: 1/1
Built-in mic
IP67, IK10
